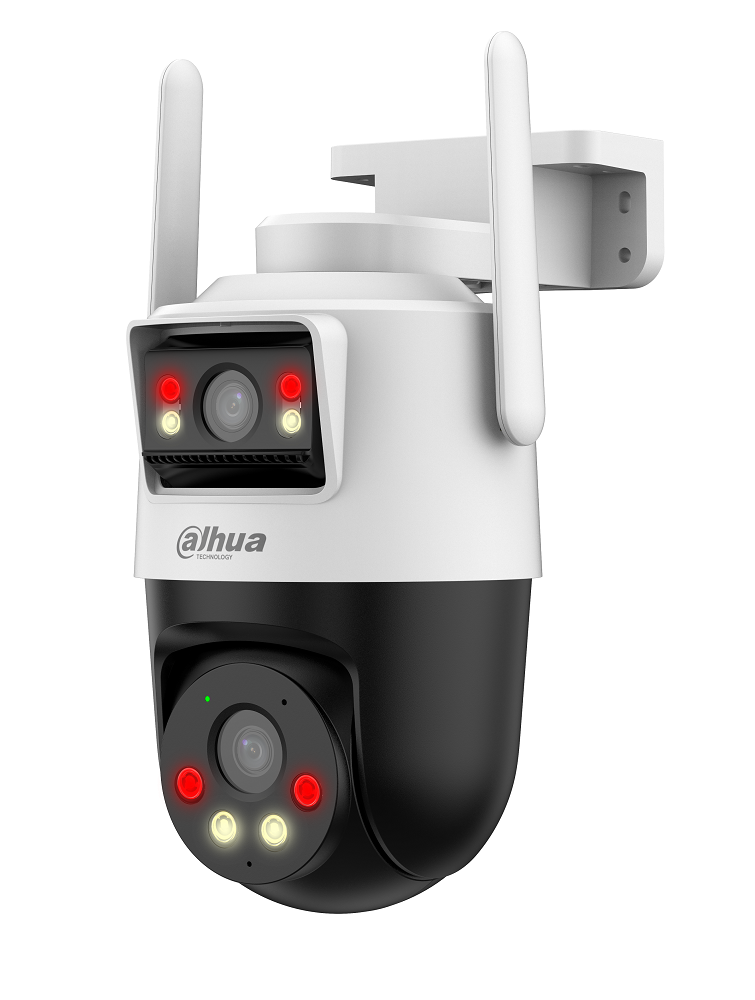

Мини-PT IP-видеокамера Dahua DH-P3D-3F-PV-4G

Camera

Fixed Lens

Image Sensor

1/2.8" CMOS

Max. Resolution

2304 (H) × 1296 (V)

Illumination Distance

30 m (98.43 ft) (Warm light); 30 m (98.43 ft) (IR)

Illuminator Number

2 (IR); 2 (Warm light)

Focal Length

4 mm

Max. Aperture

F1.6

Field of View

H: 73.8°; V: 43.4°; D: 86.5°

Pan/Tilt Range

Pan: 0° to 290°; Tilt: –10° to +15° (Manual)

PT Lens

Image Sensor

1/2.8" CMOS

Max. Resolution

2304 (H) × 1296 (V)

Illumination Distance

30 m (98.43 ft) (Warm light); 30 m (98.43 ft) (IR)

Illuminator Number

2 (IR); 2 (Warm light)

Focal Length

4 mm

Max. Aperture

F1.6

Field of View

H: 73.8°; V: 43.4°; D: 86.5°

Pan/Tilt Range

Pan: 0° to 350°; Tilt: 0° to +90° (Electric)

Smart Event

Human Detection

Yes

Vehicle Detection

Yes

Audio and Video

Video Compression

Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H

Video Frame Rate

Main stream: 3M/1080p/720p/640 × 360@(1–15/15 fps)
Sub stream 1: 640 × 360/QVGA@(1–15/15 fps)

Video Bit Rate

H264: 80 kbps–2,048 kbps
H265: 32kbps–1,536 kbps

Day/Night

Auto (ICR); Color/B/W

WDR

DWDR

Motion Detection

Yes

Image Rotation

180°

Audio Compression

PCM; G.711a; G.711Mu; G.726

Built-in MIC

Yes

Built-in Speaker

Yes

Network

Wireless Carrier Frequency Band

EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28
LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66

Max. Transmission Power

4G: Power class3: 23 dBm ±2 dB

Storage

Micro SD card (Supports max 256 GB)

Management Software

DMSS

Mobile Client

iOS; Android

General

Certifications

CE

Power Supply

12 VDC, 1 A ± 10%

Power Consumption

Basic: 5 W; Max: 12 W (illuminator + PTZ +sound and light warning)

Operating Temperature

–20 °C to +50 °C (–4 °F to +122 °F)

Operating Humidity

≤95%

Protection

IP66

Casing Material

Plastic

Product Dimensions

124.9 mm × 159.4 mm × 213.9 mm (4.92" × 6.28" × 8.42") (L × W × H)

Net Weight

610 g (1.34 lb)
